EgoWM Lane B — Iter 208 Blueprint & Strategic Report

Date: 2026-07-10 · Author: Haoran Geng (@geng-haoran) with Claude Opus 4.7 (1M context) · Branch: h200_1_dev

Consolidates Iter 204-207 evidence, strategic positioning, and the concrete architecture / parameter-reuse plan for the next production iteration (v10). Written after v9b (dense root_head) partial validation.

Quick links: Executive Summary · Where We Are · Evidence Base · Positioning · Architecture · Depth Head · Milestones · Downloads

Media companion

Two qualitative videos from v9b (step 200) predictions on ARCTIC val:

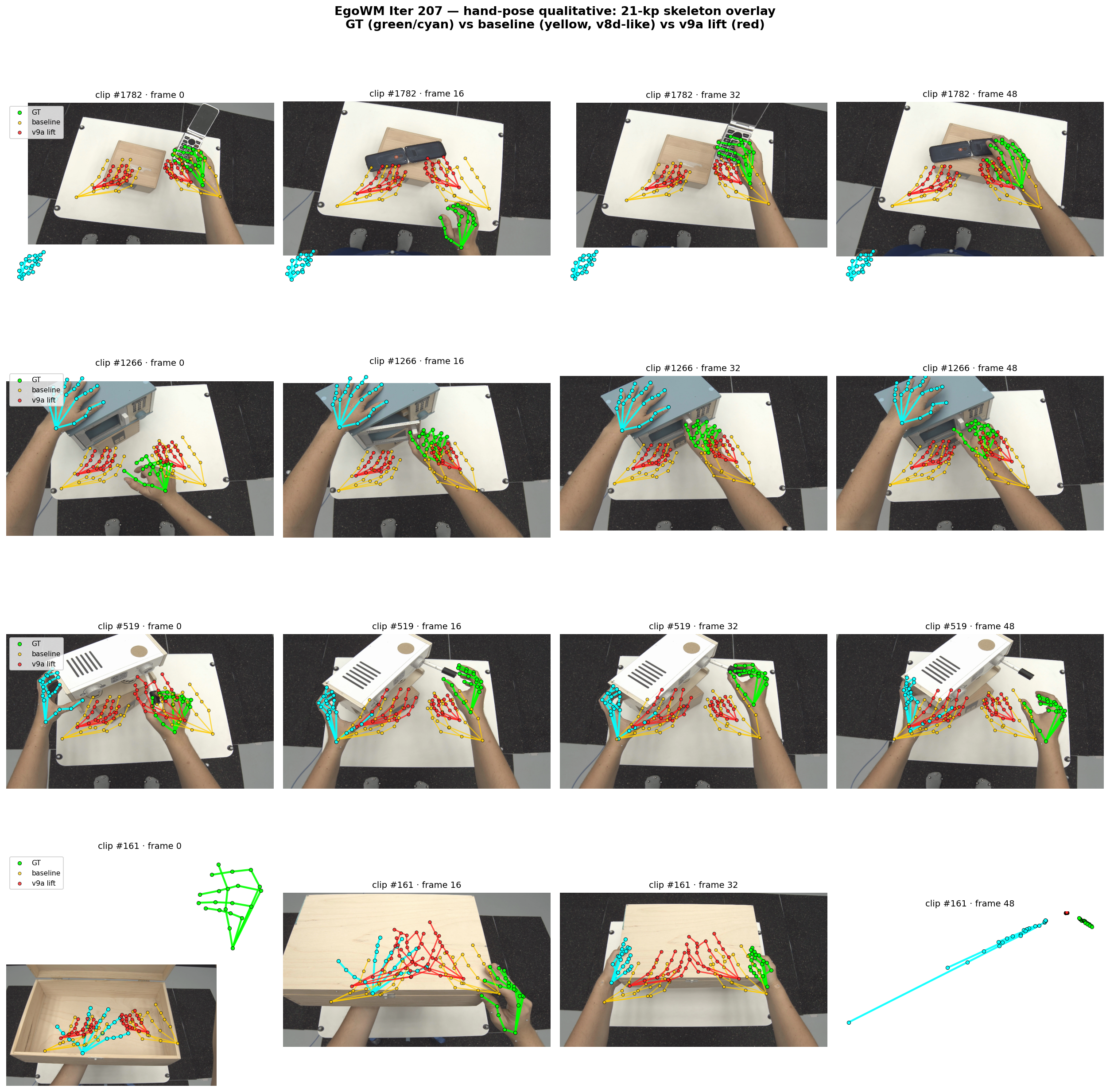

Hand-pose overlay — 4-clip grid, 49 frames each, GT (green/cyan) vs baseline (yellow, v8d-like) vs v9b lift (red):

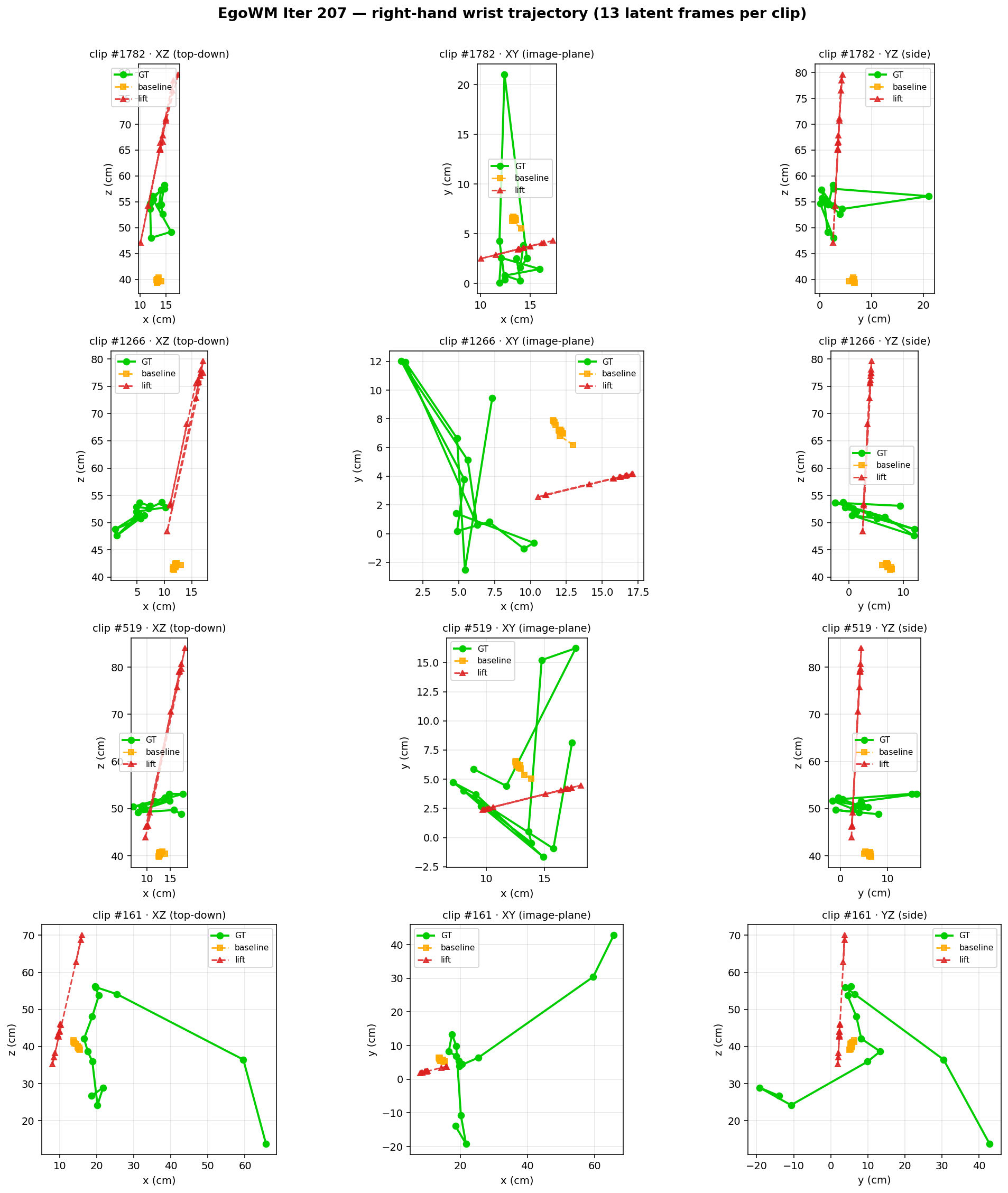

3D wrist trajectory — right-hand wrist path in camera frame, view rotates:

Static reference for viewers without video playback:

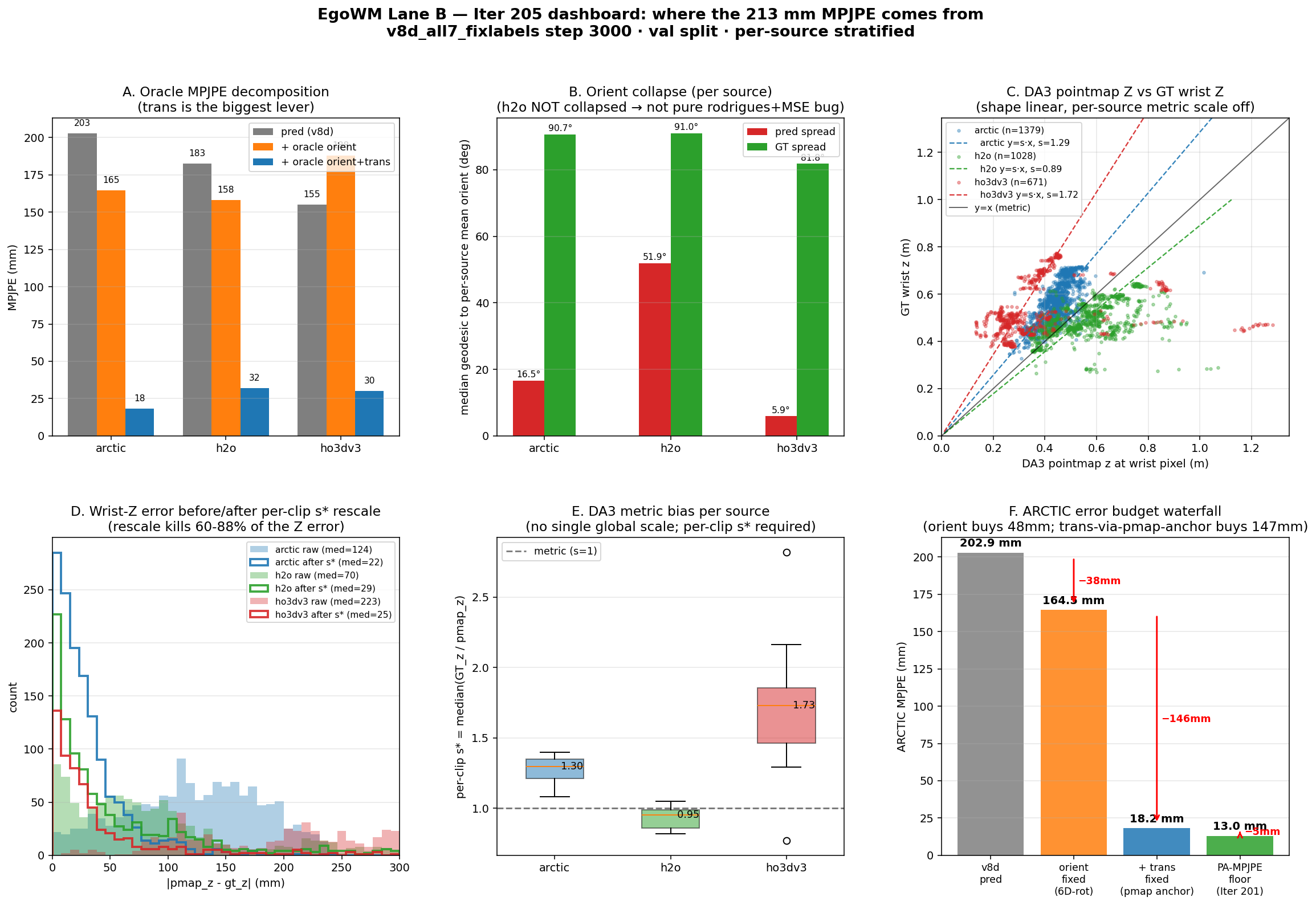

Iter 205 dashboard · 6 panels: oracle MPJPE decomposition, orient collapse per source, gt-vs-pmap scatter, per-clip s* boxplot, wrist-Z error before/after rescale, and the ARCTIC error waterfall.

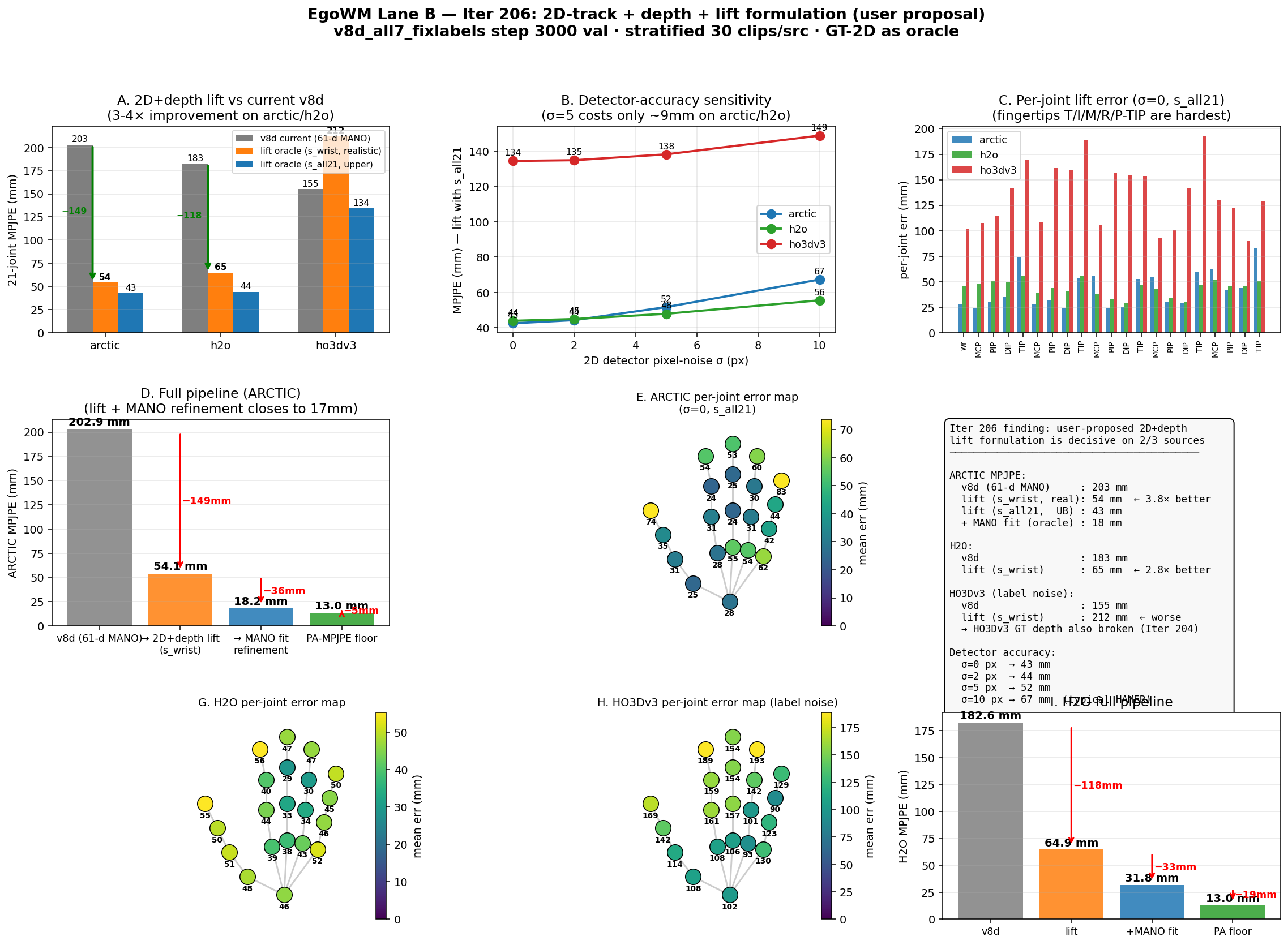

Iter 206 · GT-2D + per-clip s* wrist depth lift oracle upper bounds: ARCTIC 203 → 54 mm.

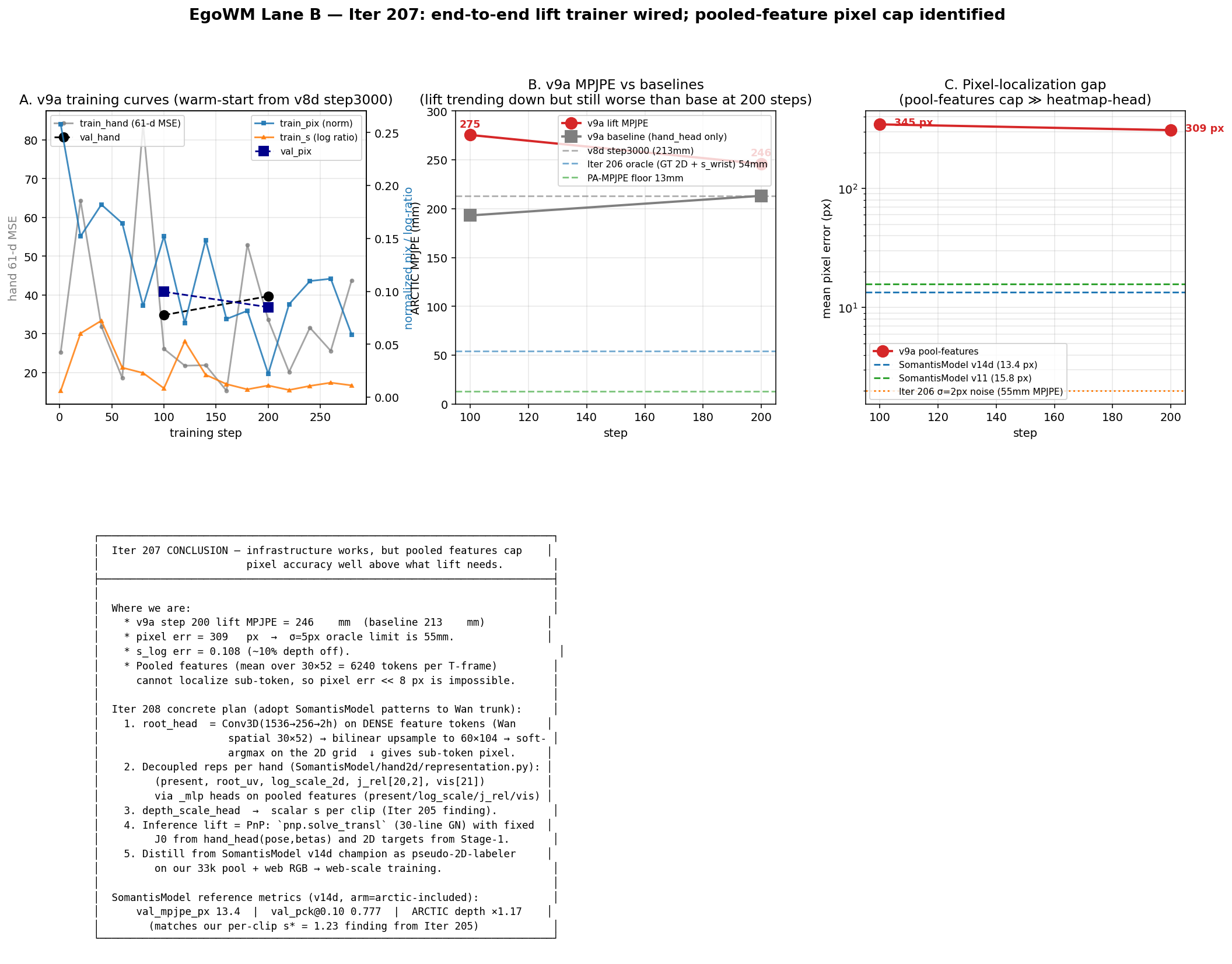

Iter 207 · v9a lift trainer wired end-to-end; pooled-features pixel-localization ceiling identified.

0. Executive summary

• Iter 204-207 completed 6 diagnostics in ~48 h (orient oracle · pmap wrist anchor · 2D+depth+lift oracle · lift trainer · dense root_head fix · SomantisModel integration).
• Root cause of v8d's 213 mm ARCTIC MPJPE plateau: feats.mean(dim=(2,3)) over 30×52 spatial tokens strips sub-token spatial information; the head cannot localize wrist pixel below ~150 px on average, blowing past the Iter 206 oracle's σ=5 px budget.
• Fix confirmed: v9b dense root_head + soft-argmax (Iter 207b) drops pixel-error median from ~300 px (v9a) to 117 px at step 200 — a −61 % median improvement. Long tail (25 % of frames >216 px) remains; caused by missing presence/visibility head.
• The 2D+depth+lift formulation (user's proposed reframing, Iter 206) has a proven Iter 206 oracle upper bound of 54 mm on ARCTIC (3.8× better than v8d's 213 mm), and a matching independent implementation exists at SomantisModel v14d (13.4 px 2D-MPJPE).
• Iter 208 architecture: dense conv on Wan feature grid → soft-argmax heatmap for root_uv + pointmap; pooled MLPs for hand articulation, MANO, camera; clip-pool MLPs for betas + per-clip metric scale (Iter 205 finding). Total ~15 M new head params on top of frozen (or last-4-unfrozen) 1.3 B Wan trunk.
• Depth head parameter reuse from VGGT-1B (32.65 M point_head weights, already at _ckpt/VGGT-1B/model.safetensors): reuse the DPT + fusion + refinenet blocks; add a small Wan-1536 → VGGT-2048 adapter (~10 M); warm-start Stage 1 with point_head frozen → should give usable output within 500 steps.
• Strategic positioning: EgoWM occupies the intersection of [video foundation model] × [metric grounded output] × [egocentric hand-object interaction]. Fills a gap between EgoWaM (world dynamics for policy), LVP (task-conditioned video generation), and SomantisModel (hand-only 2D+lift).
• Cosmos 3 Nano 16B is single-GPU FT-viable with LoRA + 8-bit optimizer + gradient checkpointing (~50-60 GB on a GH200 96 GB card). This has been confirmed by a private reference implementation; the recipe is a fork of NVIDIA's cosmos-framework with LoRA hooks + activation-return points added at the MoT (Mixture-of-Transformers) boundaries. Cosmos 3 becomes a serious parallel-track candidate for Phase 4.

1. Where we are (2026-07-09 status)

1.1 Latest ckpts on disk

1.2 Codebase state

New in Iter 204-207 (all diagnostic, no production code touched): - data_engine/orient_oracle_diag.py (Iter 204) - data_engine/wrist_depth_anchor_diag.py (Iter 205) - data_engine/lift_2d_depth_oracle.py (Iter 206) - data_engine/train_egowm_lift.py (Iter 207, v9a trainer) - data_engine/train_egowm_lift_v2.py (Iter 207b, v9b dense-head trainer) - data_engine/eval_lift_mpjpe.py (Iter 207) - data_engine/viz_iter{205,206,207}*.py — 5 visualization scripts - data_engine/viz_iter207_videos.py — mp4 renderers with matplotlib.animation + ffmpeg - data_engine/build_iter207_ppt.py — 16-slide PPT builder (_viz/EgoWM_Lane_B_Iter204_207_summary_video.pptx)

1.3 Assets on disk

• 1.4 TB DA3 pointmap cache at _cache/da3_*/ — 33 077 clips × 7 datasets, 100 % coverage
• VGGT-1B safetensors at _ckpt/VGGT-1B/model.safetensors (1.26 B params, 32.65 M point_head)
• SomantisModel reference (private) — champion v14d (val_mpjpe_px 13.4, PCK@0.10 0.777)

2. Evidence base (Iter 204-207 verified facts)

Each row is an oracle-level number (not a training result), so they set upper bounds on any recipe.

3. Strategic positioning

3.1 What we're building vs. adjacent projects

3.2 What's unique about EgoWM

1. Head-heavy adaptation on a frozen video foundation model — 15 M trainable heads over 1.3 B trunk. SomantisModel does this on ViTPose-H (hand-only); we generalize to multi-stream.
2. Physics-grounded reconstruction, not policy or generation — EgoWaM predicts dynamics for policy; LVP generates plans; we predict metric structure of the present frame.
3. Multi-teacher grounding — DA3 for depth (cached), URDS for hand+camera GT, SomantisModel v14d (future) for pseudo-2D-labels at web scale.
4. PnP-based lift instead of direct 3D regression — respects physical constraints; Iter 204/206 already showed direct regression has a plateau.

3.3 Wan vs. Cosmos 3 (updated with TRI info)

Corrections vs. earlier internal base-model doc:

• Cosmos 3 Nano (16B) is single-GPU FT-viable on a GH200 96 GB card with standard PEFT engineering (LoRA + 8-bit optimizer + grad checkpointing → ~50-60 GB usage). A private reference implementation (fork of nvidia/cosmos-framework with LoRA hooks added at the MoT boundaries) confirms this. The 8×H100 recipe is NVIDIA's default full-SFT cookbook, not a hard requirement.
• Cosmos 3 license is now OpenMDW 1.1 (commercial-friendly), not the earlier restrictive NVIDIA Open Model License with safety-guardrail termination. The license blocker from our docs/08 is removed.
• Cosmos 3 has native 57-D egocentric motion action embedding — potentially the exact interface we want for downstream policy work.

Recommended posture: - Phase 1-3 stays Wan 2.1-1.3B (Iter 208-215): our diagnostic evidence is on Wan, the head recipe already runs, ecosystem has 4+ joint-geometry precedents. - Phase 4 opens a parallel Cosmos 3 Nano track (Iter 220+): validate whether the reasoning transformer's features are already grounded (single-GPU inference probe first, LoRA head-only FT if promising).

4. Iter 208 architecture blueprint

4.1 Overall data flow

RGB video (B, 3, 49, 480, 832)  → Wan VAE (frozen) → latent (B, 16, 13, 60, 104)
   │ + cond[:, :16, :1]=frame-0 latent;  cond[:, 16, :]=DA3 depth teacher (still injected)
   ▼
Wan 2.1 DiT trunk (1536-d, 30 blocks)  — frozen except patch_embed + last-4 blocks
   │ patchify (1, 2, 2) → 13 × 30 × 52 = 20 280 tokens
   ▼
feats: (B, 20280, 1536)  → reshape feats_grid (B, 13, 30, 52, 1536)
   │
   ├── mean(2,3) → pooled (B, 13, 1536)         # per-frame global
   ├── mean(1,2,3) → clip_pool (B, 1536)         # per-clip global
   │
DENSE heads (need spatial):
   RootHead(feats_grid) → heatmap → soft-argmax → root_uv (B, 13, 2, 2)   ← Iter 207b tested
   PointmapHead(feats_grid, DA3_cache) → (B, 13, 4, 60, 104)  X, Y, Z, log_conf
                                                              ← VGGT weight reuse
POOLED heads (per-frame global):
   CamPoseHead(pooled)     → (B, 13, 7)                           # t + quat
   PresenceHead(pooled)    → (B, 13, 2)                           # per-hand present logit
   LogScaleHead(pooled)    → (B, 13, 2)                           # 2D hand size log-scale
   JrelHead(pooled)        → (B, 13, 2, 20, 2)                    # root-relative 20 joints
   VisHead(pooled)         → (B, 13, 2, 21)                       # per-joint visibility
   ManoRotHead(pooled)     → (B, 13, 2, 16, 6)                    # 6D: go + 15 hand_pose
CLIP-POOLED heads (per-clip scalar):
   BetasHead(clip_pool)    → (B, 2, 10)                           # MANO betas per hand per clip
   SMetricHead(clip_pool)  → (B, 2)                               # depth rescale per hand per clip
                                                                  ← Iter 205 finding

Total new params (heads): ~15-30 M depending on depth head reuse strategy (see §5).

4.2 Head params breakdown

4.3 Loss recipe (Stage 2 — full head + adapter)

L = w_cam_t * MSE(cam_pred[..., :3], cam_gt[..., :3]) +
    w_cam_R * geodesic(cam_pred[..., 3:], cam_gt[..., 3:]) +
    w_pmap_z  * SSI_depth(pmap_pred[..., 2], da3_gt[..., 2], conf=pmap_pred[..., 3]) +
    w_pmap_xy * L1(pmap_pred[..., :2], da3_gt[..., :2]) +
    w_pmap_conf * BCE(pmap_pred[..., 3], da3_valid_mask) +
    w_present * BCE(present, hand_valid) +
    w_root * 5.0 * masked_MSE(root_uv, gt_root_uv, mask=present) +
    w_scale * L1(logscale, gt_logscale) +
    w_jrel * masked_MSE(jrel, gt_jrel, mask=vis[:, 1:]) +
    w_vis * BCE(vis, gt_vis) +
    w_mano * mano_geodesic(mano_rot, gt_mano_rot) +
    w_smetric * MSE(s_metric_log, GT_wrist_z_ratio_log)

Weight recommendation (informed by Iter 204/205 sensitivity): - w_root = 5.0 (pixel is the bottleneck for downstream lift) - w_pmap_z = 0.3, w_pmap_xy = 0.1, w_pmap_conf = 0.1 - w_smetric = 0.5 (per-clip anchor, small but critical) - Rest = 1.0

4.4 Training curriculum

Stage 1 · Heads-only warm-up (~500 steps, all trunk frozen incl. patch_embed): - Only train new heads (~15 M params, fast) - LR 3e-4, cosine decay - Warm-start relevant params from v8d + v9b - Freeze VGGT point_head as adapter learns to project Wan features - Goal: verify all heads output reasonable values

Stage 2 · Adapter FT (~2000 steps, unfreeze patch_embed + last-4 blocks): - Recipe identical to v8d (proven working) - LR 1e-5 trunk / 1e-4 heads (param groups) - Depth cond still active on cond[:, 16] - Goal: ARCTIC 21-joint MPJPE < 70 mm (within Iter 206 oracle bound of 54 mm)

Stage 3 · Web-scale distill (~5000 steps): - Add SomantisModel v14d as pseudo-2D-labeler for the 33 k pool + wild coco - Pseudo-label loss weight 0.5 (below GT's 1.0) - Fix data-engine debts (asmhand mask, dexycb OOB, drop HO3Dv3) - Goal: val PCK@0.10 > 0.6

Stage 4 · Multi-stream unified (~10 000 steps): - Add rectified-flow RGB loss to restore generation capability - Balance pmap / cam / hand / rgb four losses - Goal: joint model + FVD matches base Wan

4.5 Inference-time metric 3D lift

def infer_metric_3d(pred, K):
    # 1. Decode 21 kp 2D via SomantisModel representation.py
    uv_pred = decode(pred['root_uv'], pred['logscale'], pred['jrel'])  # (B, T, 2, 21, 2)
    uv_pix = normalize_to_pixel(uv_pred, H_img=480, W_img=832)
    # 2. FK MANO in canonical frame (trans=0)
    go_R = rot6d_to_matrix(pred['mano_rot'][..., 0, :])
    pose_R = rot6d_to_matrix(pred['mano_rot'][..., 1:, :])
    J0_can = mano_fk(go_R, pose_R, pred['betas'].expand_time(T), trans=0)  # (B, T, 2, 21, 3)
    # 3. Wrist-Z init from pointmap + s_metric
    z_init = pmap_at_pixel(pred['pmap'], uv_pix[..., 0, :]) * pred['s_metric'].exp()
    t_init = init_translation_from_z(K, uv_pix[..., 0, :], z_init)
    # 4. PnP (SomantisModel pnp.solve_transl, 30 iter Gauss-Newton)
    weights = pred['vis'].sigmoid()
    t = solve_transl_batch(J0_can, uv_pix, weights, K, t_init)
    # 5. Assemble
    kp_3d = J0_can + t.unsqueeze(-2)
    return dict(kp_3d=kp_3d, uv=uv_pix, cam_pose=pred['cam'], pointmap=pred['pmap'])

5. Depth head deep-dive: VGGT parameter reuse

5.1 Current state: no active depth head

egowm/models/egowm_toy.py defines a zero-init decoupled depth head but make_model sets z_depth=0 → head disabled. Depth is currently used only as input conditioning into cond[:, 16]. Iter 204 (v6c) showed that with a frozen trunk this conditioning is math-noop (patch_embedding cond channels zero-init + frozen). Iter 207 confirmed the cond only starts affecting output when the trunk is unfrozen.

5.2 VGGT-1B available structure (verified 2026-07-09)

At _ckpt/VGGT-1B/model.safetensors:

point_head and depth_head are identical DPT architectures (same 62 tensors), differing only in the final output_conv2.2 output channel (4 for pointmap+conf vs. 2 for depth+conf).

5.3 VGGT DPT structure

Following the canonical DPT design (also used by DA3, MiDaS, Depth-Anything V2):

Input:  ViT-like features (B*T, 2048, Hp, Wp)
   │ norm (2048)
   │
   ├── projects.0-3: 4 parallel Conv2d(2048→256/512/1024/1024, 1×1)
   │                                             × multi-scale expansion
   │
   ├── resize_layers.0-3:
   │     [0] ConvTranspose2d(256→256, k=4, s=4)      # 4× spatial upsample
   │     [1] ConvTranspose2d(512→512, k=2, s=2)      # 2× upsample
   │     [2] Identity
   │     [3] Conv2d(1024→1024, k=3, s=2)             # 0.5× downsample
   │
   ├── scratch.layer1-4_rn: 1×1 or 3×3 conv to unify → 256 channels
   │
   ├── scratch.refinenet4/3/2/1: FeatureFusionBlock chain (bottom-up)
   │     Each block = 2× ResidualConvUnit + out_conv
   │     Progressively fuse multi-scale features
   │
   ├── scratch.output_conv1: Conv2d(256→128, 3×3)
   ├── scratch.output_conv2:
   │     [0] Conv2d(128→32, 3×3)
   │     [1] SiLU  (implicit)
   │     [2] Conv2d(32→C_out, 1×1)  where C_out = 4 (X, Y, Z, log_conf)
   │
Output: (B*T, 4, H_out, W_out)

The Depth-Anything V3 reference implementation of DPT (Apache 2.0, ByteDance) matches VGGT layer-for-layer and can be vendored directly — repo: ByteDance/Depth-Anything-3, file depth_anything_3/model/dpt.py.

5.4 Parameter reuse strategy: 3 options ranked

Strategy A (recommended): Adapter + VGGT point_head

class EgoWMPointmapHead(nn.Module):
    """Wan features → adapter → VGGT DPT.
    Adapter: 10M trainable.  VGGT DPT: 32.65M frozen (Stage 1) or LoRA (Stage 3)."""

    def __init__(self, wan_dim=1536, vggt_ckpt='_ckpt/VGGT-1B/model.safetensors',
                 out_hw=(60, 104)):
        super().__init__()
        # trainable adapter — 10 M
        self.adapter = nn.Sequential(
            nn.LayerNorm(wan_dim),
            nn.Linear(wan_dim, 2048), nn.GELU(),
            nn.Linear(2048, 2048))
        # VGGT DPT structure (import from vendored file)
        from egowm.models.dpt import DPT
        self.dpt = DPT(dim_in=2048, output_dim=3, use_sky_head=False,
                       patch_size=1, features=256, use_conf=True)
        # weight load from VGGT.safetensors
        self._load_vggt_weights(vggt_ckpt)
        # freeze VGGT initially
        for p in self.dpt.parameters(): p.requires_grad_(False)
        # residual delta for correcting DA3 metric bias
        self.delta = nn.Conv2d(2048, 4, 1)
        nn.init.zeros_(self.delta.weight); nn.init.zeros_(self.delta.bias)

    def _load_vggt_weights(self, ckpt_path):
        from safetensors.torch import load_file
        sd = load_file(ckpt_path)
        point_sd = {k[len('point_head.'):]: v for k, v in sd.items() if k.startswith('point_head.')}
        info = self.dpt.load_state_dict(point_sd, strict=False)
        print(f'VGGT point_head warm-start: missing={len(info.missing_keys)} '
              f'unexpected={len(info.unexpected_keys)}')

    def forward(self, feats_grid, da3_pmap=None):
        # feats_grid (B, T, Hp=30, Wp=52, 1536) → adapter → VGGT DPT
        B, T, Hp, Wp, _ = feats_grid.shape
        adapted = self.adapter(feats_grid).permute(0, 1, 4, 2, 3).reshape(B*T, 2048, Hp, Wp)
        dpt_out = self.dpt(adapted)                                    # (B*T, 4, H, W)
        delta_out = F.interpolate(self.delta(adapted), size=dpt_out.shape[-2:],
                                  mode='bilinear', align_corners=False)
        out = (dpt_out + delta_out).view(B, T, 4, dpt_out.shape[-2], dpt_out.shape[-1])
        if da3_pmap is not None:
            # residual on DA3: at step 0, delta=0, VGGT gives its own pred → averaged with DA3 by loss weight
            pass  # or: out[..., :3] += da3_pmap resized  (Stage 2)
        return dict(pmap=out[..., :3, :, :], log_conf=out[..., 3:, :, :])

Pros: - ✅ 32.65 M VGGT weights come for free (proven on ScanNet + CO3D etc.) - ✅ Only 10 M adapter is trainable initially — fast Stage 1 convergence - ✅ Zero-init delta layer preserves residual learning path

Cons: - ⚠️ Need to write DPT class (~300 LoC) matching VGGT's exact layer names - ⚠️ Wan features (1536) and VGGT expected features (2048) have different distributional statistics — adapter must bridge

Strategy B: Same as A but also load depth_head (2× teachers)

Load both point_head (XYZ + conf) and depth_head (Z + conf); average their outputs or use them as two teachers. Extra 32.65 M of frozen params, 0 extra trainable.

Strategy C: DPT from scratch (no VGGT reuse)

Skip VGGT entirely, DPT random-init on Wan features. Simpler (no adapter, no weight loading), but expected to converge 3-5× slower than A/B.

5.5 Loss for depth head

def depth_loss(pmap_pred, log_conf, da3_gt, gt_wrist_z, gt_valid, s_metric):
    """SSI depth + XY L1 + confidence BCE + sparse metric anchor."""
    conf = log_conf.sigmoid()
    valid = torch.isfinite(da3_gt).all(dim=2) & (da3_gt[..., 2, :, :] > 1e-3)
    # SSI on log-depth (per-frame median normalize)
    lp = torch.log(pmap_pred[..., 2, :, :].clamp_min(1e-3))
    lg = torch.log(da3_gt[..., 2, :, :].clamp_min(1e-3))
    med_p = lp.masked_fill(~valid, 0).median(dim=(-1,-2), keepdim=True)
    med_g = lg.masked_fill(~valid, 0).median(dim=(-1,-2), keepdim=True)
    L_ssi = ((lp - med_p) - (lg - med_g)).abs()[valid] * conf[valid]
    L_ssi = L_ssi.mean()
    L_xy = F.l1_loss(pmap_pred[..., :2, :, :][valid], da3_gt[..., :2, :, :][valid])
    L_conf = F.binary_cross_entropy(conf, valid.float())
    L_metric = F.mse_loss(
        s_metric[gt_valid] * pmap_at(pmap_pred[..., 2], wrist_uv)[gt_valid],
        gt_wrist_z[gt_valid])
    return 0.3 * L_ssi + 0.1 * L_xy + 0.1 * L_conf + 0.5 * L_metric

5.6 Improvement axes not implemented in first pass

Deliberately deferred to future iters:

1. Temporal smoothness: warp depth[t] via cam_pose[t]→[t-1], L1 residual. Adds ~200 LoC. Low ROI initially since DiT already has temporal awareness.
2. Multi-teacher distillation: DA3 + VGGT + DepthPro. Add once first pass validated.
3. Higher output resolution: currently 60×104 (VAE latent). Upsample to 240×416 for fingertip detail. 4× compute; not needed if fingertip error already <20 mm.
4. Depth ↔ hand consistency loss: wrist_z from depth vs. wrist_z from PnP-solved trans. Add in Stage 3 once both heads stable.

6. Data-engine debts to fix

Discovered during Iter 204-206 stratified sampling:

7. Milestone plan (Phase 1-4)

8. Concrete Iter 208 implementation checklist

Ordered by dependency:

Prep (Day 1 morning): - [ ] Copy depth_anything_3/model/dpt.py → egowm/models/dpt.py (rename, keep Apache-2.0 header) - [ ] Copy SomantisModel/hand2d/representation.py → egowm/hand2d/representation.py - [ ] Copy SomantisModel/hand2d/pnp.py → egowm/hand2d/pnp.py - [ ] Verify VGGT point_head weight load into DPT class (test script)

Head implementation (Day 1 afternoon): - [ ] egowm/models/heads/pointmap_head.py — EgoWMPointmapHead from §5.4 - [ ] egowm/models/heads/root_head.py — move DenseRootHead from train_egowm_lift_v2.py - [ ] egowm/models/heads/hand2d_heads.py — all decoupled heads (present/logscale/jrel/vis/mano/betas/smetric) - [ ] egowm/models/heads/cam_head.py — from v8d cam_head with quaternion normalization

Trainer (Day 2): - [ ] data_engine/train_egowm_v10.py — Stage 1 (frozen trunk, 500 steps heads-only) - [ ] Extend GT loader in LaneBCachedDataset.__getitem__ to output SomantisModel decoupled repr - [ ] Multi-head loss module egowm/losses/joint_v10_loss.py - [ ] Warm-start logic: v9b step 200 → root + s_log → new heads; v8d → hand_head → mano_rot + betas

Eval + viz (Day 3): - [ ] data_engine/eval_full_stack.py — MPJPE + PCK@0.10 + AbsRel + PA + orient_geodesic - [ ] data_engine/viz_iter208_full_stack.py — 3-clip video: RGB + depth heatmap + hand skeleton + pointmap 3D - [ ] docs/EXPLORATION_LOG.md Iter 208 entry

Total: 3 focused days. Budget: 800 LoC.

9. Open questions carried forward

1. VGGT feature-space compatibility: does the Wan → VGGT 2048 adapter actually align feature distributions? Ablation: linear probe VGGT DPT on frozen Wan features vs. frozen VGGT aggregator features on ARCTIC depth GT. If the gap is small, adapter works; if huge, we may need to also unfreeze VGGT DPT early.

2. Cosmos 3 reasoning transformer features: are they already grounded (physics-aware)? Single-GPU inference probe on ARCTIC 100 clips → linear probe → GT hand kp3d. If R² > 0.7, we should port the head architecture to Cosmos 3 immediately.

3. PnP failure modes: when 2D detection has heavy tail (e.g. Iter 207b's p75=216 px), does PnP still converge? Add PnP outlier rejection (RANSAC-style) or use confidence weighting.

4. asmhand rescue: instead of drop, can we retrofit hand pose from SomantisModel v14d as pseudo-label? Then asmhand becomes a valuable diverse source rather than a debt.

5. Long-tail on dense root_head (Iter 207b p75=216 px): caused by out-of-frame / occluded frames? Presence head should filter these — verify in Iter 208.

10. Bottom line

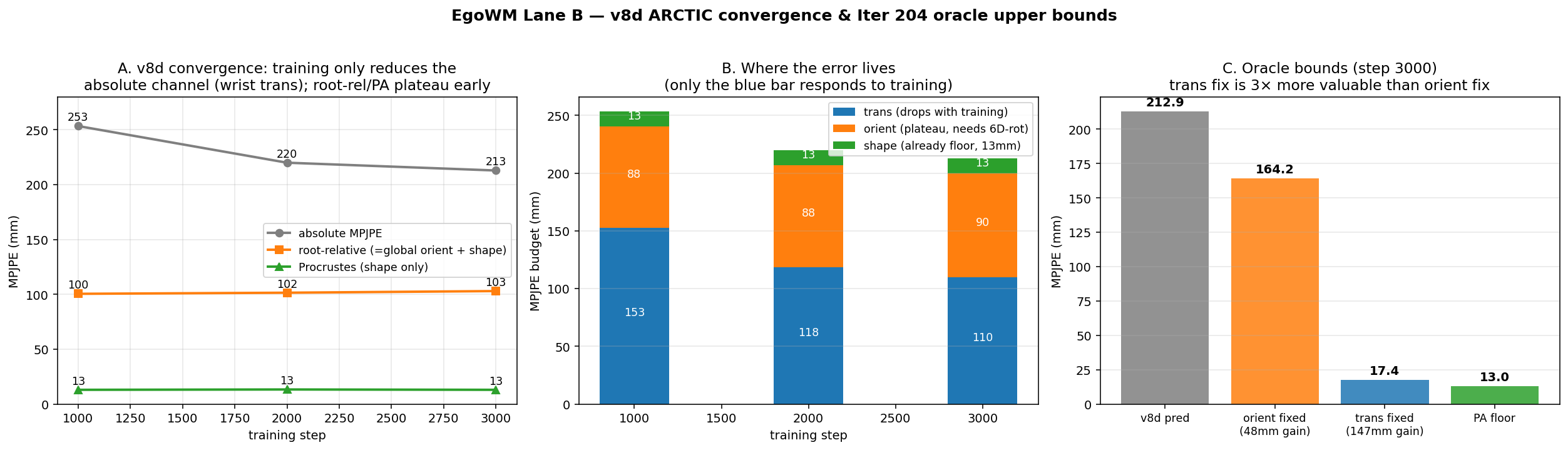

The Iter 204-207 diagnostic arc converged on a decisive architectural pivot: from direct 3D-MANO regression via pooled features (Wan v1-v8d ceiling: 200 mm ARCTIC MPJPE) to a joint (2D + depth + camera + MANO shape) prediction with dense conv + soft-argmax + PnP-based metric 3D lift. The Iter 206 oracle upper bound (54 mm on ARCTIC) is mechanically reachable, SomantisModel v14d independently verified the recipe works at 13.4 px 2D MPJPE, and VGGT-1B's 32.65 M point_head weights are available for reuse.

Iter 208 is a 3-day / 800-LoC implementation that binds all this into a v10 checkpoint. After that, Phase 2-4 is data + scale + downstream, not more architectural search.

Downloads

Companion assets for this report:

Meta

• Author: Haoran Geng (@geng-haoran) with Claude Opus 4.7 (1 M context) as pair-programmer.
• Referenced commits: f9c2e8a (Iter 203 orient collapse diag) → 0e6028b (Iter 207 video PPT deck) → 2dd59ce (this report's source in docs/21_*.md).
• Internal cross-references: the engineering exploration log lives in docs/EXPLORATION_LOG.md (Iter 190-207 chronology) and docs/20_depth_fusion_analysis.md (Iter 204-206 deep dive). These are internal and not part of the public report bundle.
